Axial Flux BLDC Motor Ceramic Ferrite Magnets
Use the fit tool first to decide whether an axial flux BLDC motor with ceramic ferrite magnets is plausible, then review the evidence, risks, and RFQ data needed before the design moves into simulation, samples, and mass-production sourcing.
Decision Report: When Ferrite Works in Axial BLDC Motors
Ferrite can be the right answer when a motor program can trade magnetic energy density for larger rotor face area, lower rare-earth exposure, and more stable high-volume sourcing. The decision is strongest for an axial BLDC motor with ferrite magnets when diameter, pole area, and air-gap control are still open design variables.
Key Conclusions and Boundaries (Updated June 26, 2026)
- •Use ferrite when geometry is flexible: the lower ferrite magnetic energy density must be offset by rotor diameter, pole area, winding choices, and tight air-gap control.
- •Use the tool result as screening only: a viable result still needs grade-specific datasheets, FEM, thermal review, and prototype torque testing before design freeze.
- •Use RFQ data for cost decisions: public material-price comparisons are not enough. Compare landed cost including grade, tooling, grinding, magnetization fixtures, packaging, yield, and forecast window.
- •Critical Boundary (Risk): The higher physical volume required for ferrite increases rotational inertia. Therefore, an axial BLDC motor with ferrite magnets is not suitable for highly dynamic, rapid-acceleration servos (e.g., drones, CNC). It is strictly recommended for steady-state high-torque applications unless testing proves otherwise.
Geometry lever
Increase usable magnetic area before assuming ferrite can match a compact NdFeB rotor.
Thermal lever
Check operating temperature and demagnetization margin against the selected ferrite grade.
Evidence lever
Replace screening assumptions with datasheets, FEM, samples, and measured torque curves.
| Claim | Evidence | Source / Date | Decision Use |
|---|---|---|---|
| Ferrite improves rare-earth exposure, but not every mineral risk. | USGS Mineral Commodity Summaries 2026 reports ceramic ferrite magnets as a strontium end use and lists U.S. strontium net import reliance at 100% for the 2025 estimate. | USGS Mineral Commodity Summaries 2026: StrontiumPublished February 2026; data reviewed June 26, 2026 | Use ferrite to reduce rare-earth magnet exposure, then still qualify raw-material continuity for strontium/barium ferrite. |
| An axial BLDC motor with ferrite magnets is a topology redesign, not a magnet swap. | Public axial-flux ferrite motor research treats ferrite geometry and axial-flux layout as part of the design problem, supporting the need for rotor-area compensation and simulation. | DTU Orbit: Design, modelling and fabrication of a ferrite magnet axial-flux in-wheel motorPublished research record; data reviewed June 26, 2026 | Do not approve ferrite until rotor OD, pole area, air gap, and thermal assumptions have been checked. |
| Ferrite grade ranges are useful for screening but insufficient for final torque sign-off. | Y30/Y35/Y40 planning values must be replaced by grade-specific factory datasheets, incoming inspection data, and FEM/prototype torque results for the selected geometry. | FerriteCustom RFQ qualification checklistOperational requirement reviewed June 26, 2026 | Treat tool scores as pre-RFQ direction, then verify with drawings, samples, and measured magnetic properties. |
| Ferrite motors need flux-density proof before power-density claims are accepted. | DTU axial-flux ferrite motor research reports that, when ferrite and NdFeB magnets of the same dimensions are compared, ferrite produces roughly one-quarter of the flux. This supports geometry compensation and FEM validation, not a simple universal power-limit rule. | DTU Orbit: ferrite magnet axial-flux in-wheel motor research summaryPh.D. thesis published 2018; data reviewed June 26, 2026 | Do not use kW alone to approve ceramic ferrite. Require same-magnet-envelope flux comparison, rotor-area tradeoff, inertia budget, and prototype torque data. |
| Motor Architecture | Magnet Material | Material Cost Ratio | Design Compensation | Best Fit Application |
|---|---|---|---|---|
| Axial BLDC | Ferrite (grade-specific) | Quote baseline | Wide Diameter / Flat Pancake | E-bikes, Ceiling Fans, HVAC Pumps |
| Radial BLDC | Ferrite (grade-specific) | Quote baseline | Longer Axial Stator Length | Appliance Compressors, Washers |
| Compact Radial/Axial | NdFeB (high energy density) | Quote separately | Extremely Compact & Lightweight | Drones, Power Tools, EVs |
| Factor | Ferrite Favored When | NdFeB Favored When | Proof Needed |
|---|---|---|---|
| Rotor envelope | Flexible OD or axial length available | Fixed compact envelope | Mechanical envelope drawing + air-gap stack-up |
| Target power & mass | Continuous output target leaves room for larger rotor area | High-output or traction-class duty with strict mass limits | Rated/peak power split + mass, inertia, cooling, and installation constraints |
| Torque density | Steady torque with cost pressure | Maximum torque-to-weight requirement | FEM comparison and prototype torque curve |
| Cost target | High-volume BOM reduction is decisive | Performance premium is acceptable | Quote with grade, grinding, magnetization, packaging |
| Thermal exposure | High-temperature stability is valuable | High-energy NdFeB grade is already qualified | Thermal duty cycle and demagnetization margin |
| Program risk | Rare-earth price exposure is a major concern | Known NdFeB platform reuse reduces launch risk | Sourcing risk register and pilot validation plan |
The tool result is treated as final motor validation.
Require FEM, thermal review, prototype torque data, and grade datasheet confirmation before design freeze.
Material savings are erased by oversized rotor, grinding, tooling, or scrap.
Compare full landed cost: magnet, tooling, machining, magnetization fixture, packaging, and line assembly.
Ferrite is used in a compact or rapid-acceleration product where inertia matters.
Keep NdFeB as baseline for drones, compact power tools, fast servos, and other high-response duty cycles.
Method: How the Tool and Report Work Together
- 1
Screen architecture, power, space, and cost target in the fit tool.
- 2
Check whether axial BLDC geometry can add magnetic area without breaking the product envelope.
- 3
Compare ferrite and NdFeB with the same torque, thermal, and duty-cycle targets.
- 4
Move only qualified cases into drawings, sample magnets, FEM, and pilot production.

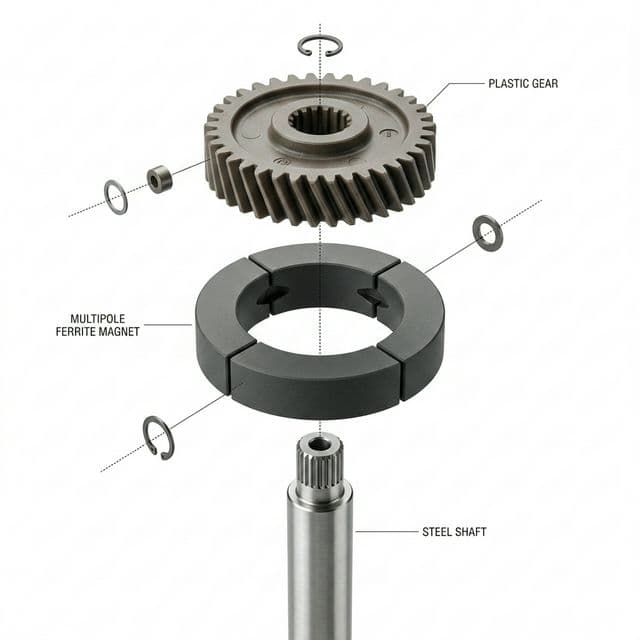

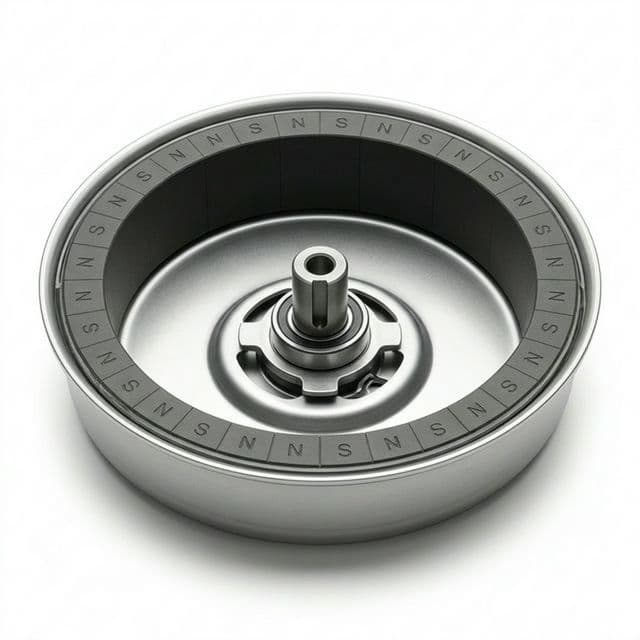

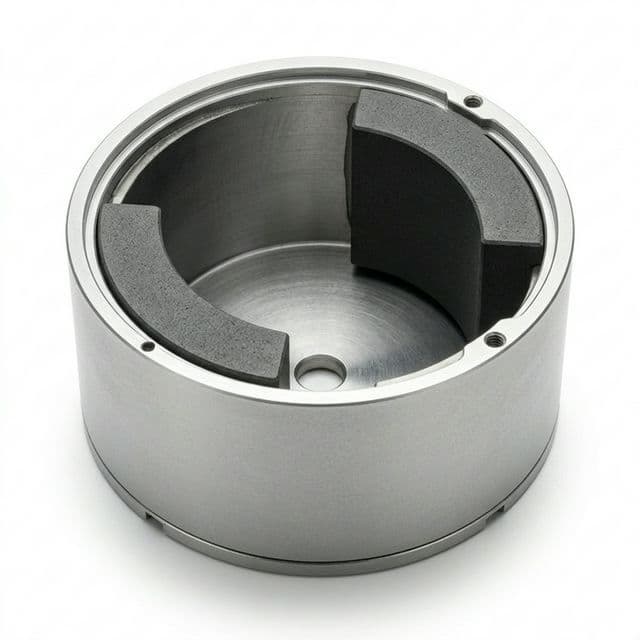

Typical DC Motor Use Cases
OEM Qualification Checkpoints
Magnetic Fit & Topology
Verify ferrite grade (Y30/Y35/Y40), pole count, air-gap target, and rotor OD against rated torque. For axial BLDC motors with ferrite magnets, topology compensation is mandatory.
Process Control
Align dimensional tolerance, incoming inspection criteria, and pilot-to-mass transfer checkpoints.
Supply Continuity
Lock annual demand window, packaging standard, and export lane planning before production ramp.
