Ferrite Arc and Segment Magnets
Arc/segment ferrite magnets designed for high-repeatability motor magnetic paths and OEM tooling compatibility.
Product Overview

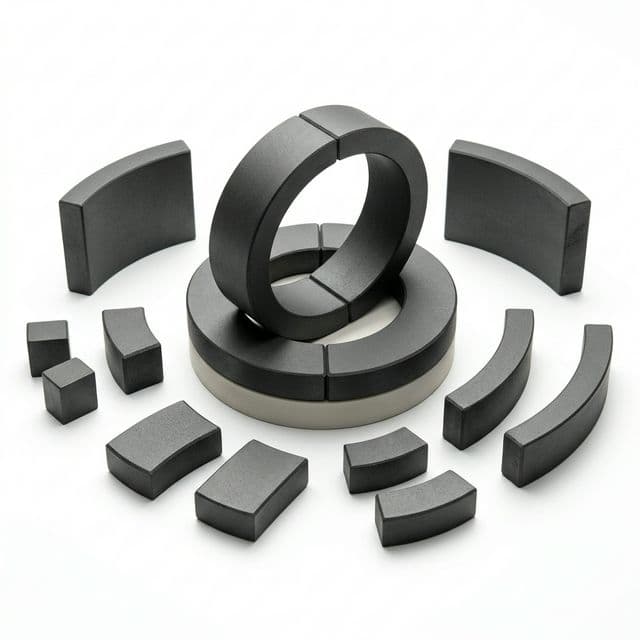

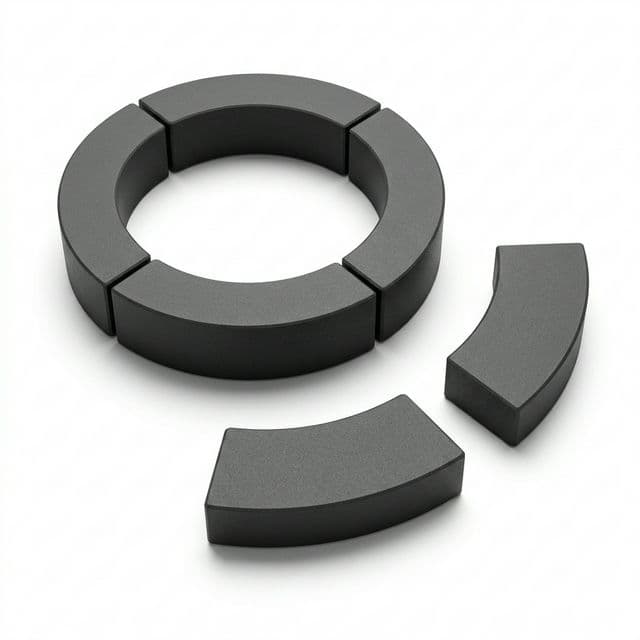

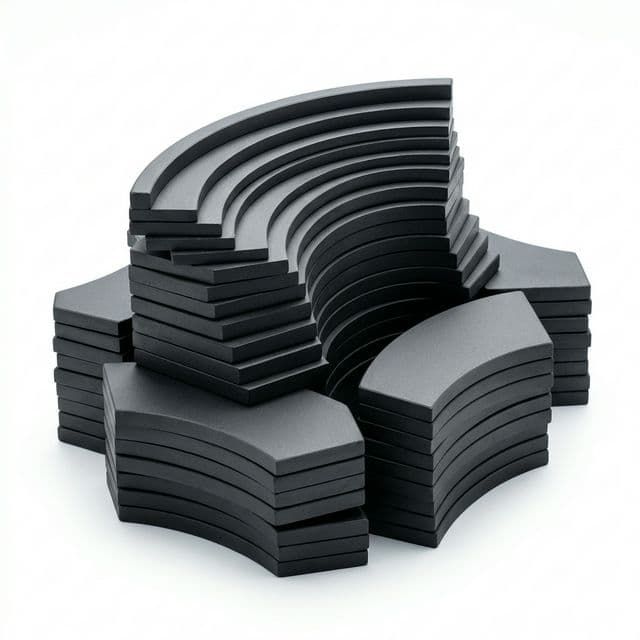

Ferrite arc segments are the backbone of DC motor magnetic circuits worldwide. Each arc is pressed in a magnetic field to align grain orientation along the radial direction, maximizing flux density at the air gap. FerriteCustom produces motor arcs from 20mm to 200mm outer radius in 2-pole through 8-pole configurations, with tooling support for custom curvatures, included angles, and mounting features.
Technical Specifications
Available Grades
Y30, Y30BH, Y35, Y40
Size Range
OR 20–200 mm, arc angles 30°–180°, thickness 3–25 mm
Max Temp
250°C
Process
Wet pressing in oriented magnetic field + Sintering
Surface Finish
As-sintered, ID/OD arc ground, Pole face ground
Magnetization
Radial (through thickness), Anisotropic oriented
Key Features
- Oriented pressing in 10 kOe+ field ensures maximum radial remanence
- Tooling library covers 500+ standard motor arc geometries
- Arc angle tolerance ≤±0.5° for consistent multi-segment assembly
- Weight-sorted output for balanced rotor assembly (±2% matching)
- Proven in automotive PPAP-qualified motor programs
Customization
- Custom arc radius, angle, and thickness to motor housing drawing specifications
- Slot, notch, or chamfer features added via post-sintering machining
- Optional epoxy coating for bonding compatibility with motor housing
- Magnetization direction optimized per motor FEA simulation results
- PPAP documentation package for automotive Tier 1/Tier 2 qualifications
Typical Applications
