What is the difference between isotropic and anisotropic ferrite blocks?

Isotropic blocks (e.g., C1 grade) can be magnetized in any direction after pressing, offering flexibility but lower energy product (~1.1 MGOe). Anisotropic blocks (e.g., Y30, Y35) are pressed in a magnetic field aligning grain orientation, delivering higher energy product (~3.5 MGOe) but only in the oriented direction.

Can you add mounting holes to ferrite blocks without cracking?

Yes. We use diamond-tipped drilling and countersinking after sintering. Hole diameter must be ≥2mm and positioned ≥3mm from any edge to prevent stress cracking. We recommend countersunk holes for flush bolt mounting.

What maximum pull force can a ferrite block magnet achieve?

Pull force depends on grade, dimensions, and contact surface. A typical Y30 block of 50×25×10mm produces approximately 3–4 kg pull force against mild steel. Higher grades (Y35, Y40) and larger contact area increase force proportionally.

Products ISO 9001:2015 OEM Manufacturer

Ferrite Block Magnets

Rectangular ferrite blocks for industrial fixtures, magnetic holders, and robust low-cost magnetic systems.

Request OEM Quote

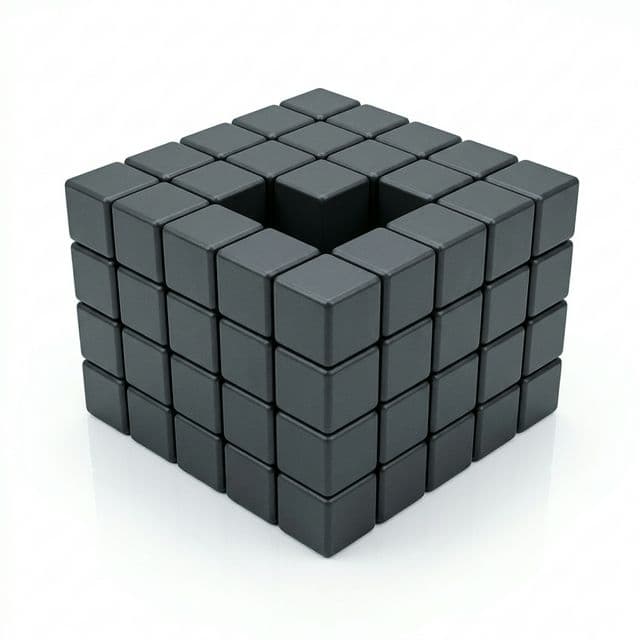

Ferrite block magnets in grid stack and cube formation for dimensional repeatability checks.

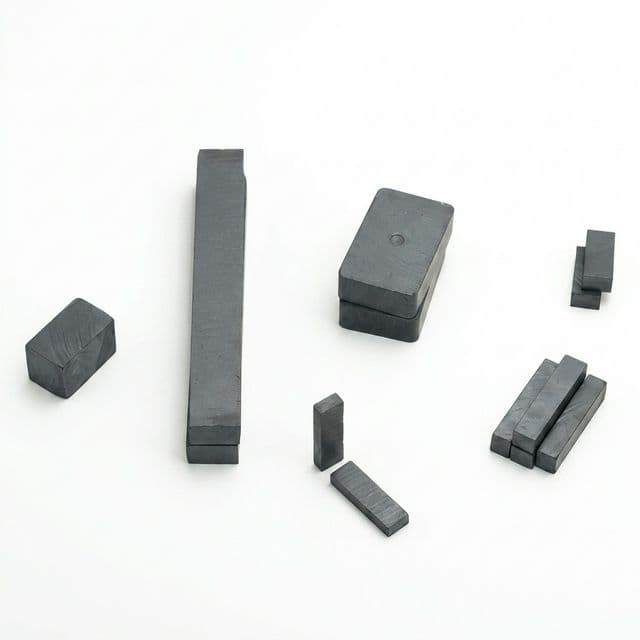

Scattered ferrite block magnets in multiple dimensions for procurement size planning.

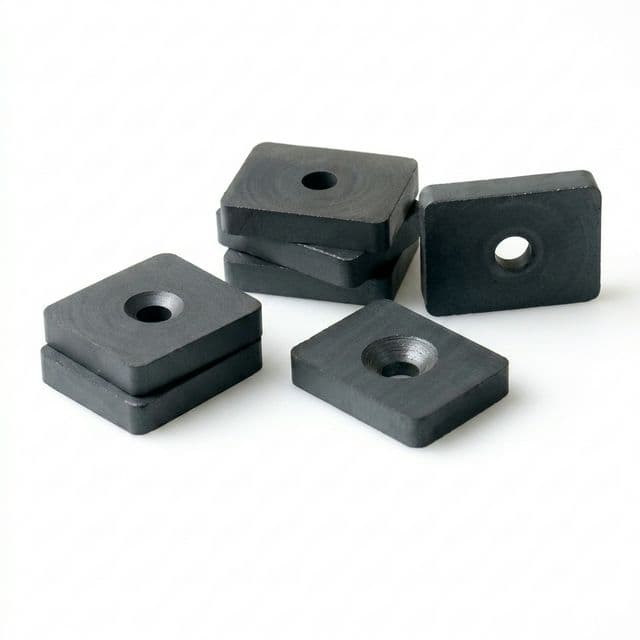

Ferrite block magnets with countersunk holes for direct fixture mounting.

Product Overview

Ferrite block magnets provide the simplest geometry for magnetic circuit integration and fixture design. Available in both isotropic (dry-pressed) and anisotropic (wet-pressed) versions, blocks can be ground to tight tolerances on all six faces. FerriteCustom produces blocks from 10×5×3mm up to 150×100×25mm, with optional countersunk or through-holes for mechanical fastening.

Technical Specifications

Available Grades

Y30, Y30BH, Y35, C1 (isotropic)

Size Range

10×5×3 mm to 150×100×25 mm

Max Temp

250°C

Process

Dry pressing (isotropic) or Wet pressing (anisotropic) + Sintering

Surface Finish

As-sintered, All-face ground, Polished

Magnetization

Through thickness, Through length, Through width

Key Features

Available in both isotropic (multi-direction magnetizable) and anisotropic (oriented) versions
All six faces can be precision ground for tight stack-up control
Countersunk or through-holes can be added for mechanical fastening
Excellent dimensional repeatability: ±0.1mm standard, ±0.05mm ground
No coating required — ferrite ceramic withstands water, alkalis, and most solvents
