Ferrite Arc Magnets: Tool-First Fit Checker and Evidence-Based RFQ Decision Report
Run a 2-minute ferrite arc magnets fit check for arc ferrite RFQs, then use dated trade, standards, and risk evidence to decide go, conditional, or redesign.
Published: May 19, 2026. Last updated: June 9, 2026.
Alias intents covered on this canonical page: "arc ferrite", "arc ferrite magnet", "ferrite arc magnet", and "arc ferrite magnets".
Refresh scope and source window
Quarterly source refresh + policy-trigger refresh. Snapshot refreshed on June 9, 2026 with WITS 2024 rows (May 25 page refresh timestamp retained), USITC HTS 2026 Revision 9 status, Federal Register policy window updates, USGS 2026 strontium data, EC/UK RoHS anchors, ECHA candidate-list cadence, and IEC/MMPA/ASTM measurement-boundary checks.
1) Tool layer: run ferrite arc magnets fit check first
Input geometry, flux, thermal, lead time, sourcing, and quality evidence depth. This checker also covers the alias queries "arc ferrite" and "arc ferrite magnets". Output includes score, uncertainty, and next action.
Ferrite Arc Magnets Fit Tool (2-minute checker)
First-pass planning support for ferrite arc magnets (also searched as "arc ferrite" or "arc ferrite magnet"). This does not replace simulation, pilot tests, or formal supplier qualification.
Model range: 10-12000k pieces.
Model range: 25-260 mm.
Model range: 20-170 degrees.
Model range: 2-40 mm.
Model range: 160-500 mT.
Model range: -20°C to 220°C.
Model range: 2-20 weeks.
Empty state
Run the checker to get a directional fit score, uncertainty note, and a practical next action.
Primary intent
Execute ferrite arc / arc ferrite fit decision in minutes
Secondary intent
Understand evidence, boundaries, and tradeoffs
Source freshness
Snapshot dated June 9, 2026
Main CTA
Run tool -> lock RFQ with boundaries
Quick anchor navigation
Tool layer solves the immediate go/conditional/low question. Report layer explains confidence, failure modes, and actions.
2) Report summary: core conclusions and applicability
Each conclusion includes suitability and non-suitability so users can decide quickly without overgeneralizing.
Intent is hybrid: users need execution first, then trust proof
SERP sampling on May 19, 2026 shows supplier catalogs, trade marketplaces, and analysis pages co-existing for ferrite arc magnet query variants.
A single URL must start with a working checker and then supply evidence-backed decision context.
Suitable: Teams that need a fast go/conditional/low signal before opening RFQ.
Not suitable: Readers who only want generic definitions without decision actions.
Source: Brave query cluster snapshot: ferrite arc magnets / arc ferrite magnet (retrieved May 19, 2026).
Trade depth is large, but customs rows are not arc-specific proof
WITS reports China 2024 exports of US$3,236,652.39k (HS 850511) and US$502,689.89k (HS 850519).
Use trade data for liquidity context only; factory-level arc capability still needs supplier evidence.
Suitable: Commercial teams validating whether discovery depth exists before shortlisting factories.
Not suitable: Teams using customs aggregates as direct process-capability evidence.
Source: WITS/UN Comtrade rows, accessed May 25, 2026.
Unit-value spread implies mixed product classes
Computed from WITS rows: HS 850511 about US$24.8/kg vs HS 850519 about US$2.8/kg.
Quote strategy must be tied to geometry, tolerance, and magnetic window, not one blended market price.
Suitable: Buyers building negotiation bands before supplier comparison.
Not suitable: Programs that benchmark all ferrite arc parts with a single price curve.
Source: Internal calculation from WITS 2024 value and quantity rows.
Thermal derating boundary is a primary execution gate
MMPA public table cites reversible Br coefficient around -0.2%/°C and Curie around 450°C.
Curie headline is not release criteria; operating thermal validation must be tied to duty cycle.
Suitable: Motor and actuator teams with explicit thermal verification plans.
Not suitable: Projects approving suppliers only from room-temperature magnetic values.
Source: MMPA Standard 0100-00 table reference, retrieved May 25, 2026.
Policy and classification timing can change landed cost quickly
USITC announcement archive now lists 2026 HTS Revision 9 (May 28, 2026); Federal Register Proclamation 11012 sets a 10% temporary surcharge window from February 24 through July 24, 2026 unless changed earlier.
RFQ validity should include revision-date and policy-trigger checkpoints.
Suitable: Import lanes sensitive to duty or customs policy updates.
Not suitable: Programs locking annual duty assumptions without date-controlled review.
Source: USITC announcement archive + Federal Register (Proclamation 11012 / EO 14388).
Ferrite continuity risk exists despite rare-earth avoidance
USGS 2026 strontium chapter shows U.S. net import reliance at 100% (2025 estimate), strontium compounds apparent consumption up 16%, and celestite imports rising to 8,100 tons in 2025 from 29 tons in 2024.
Ferrite strategy still needs continuity controls and backup-lane planning.
Suitable: Teams balancing cost, continuity, and acceptable risk before award.
Not suitable: Single-lane plans that assume ferrite eliminates upstream risk.
Source: USGS Mineral Commodity Summaries 2026, strontium chapter.
Suitable audience
- Teams preparing ferrite arc RFQ packs for industrial use.
- Procurement leaders balancing price, continuity, and quality risk.
- Engineering managers who need fast pre-simulation filtering.
Not suitable audience
- Users seeking final release criteria without pilot and supplier evidence.
- Retail shoppers looking for single-unit purchase advice.
- Projects where part geometry and test methods are still undefined.
Trade concentration and data-completeness layer
Added in this stage1b round to convert macro trade context into executable continuity checks and data-quality limits.
| Scope | World value / quantity | Top-3 share | Top partners | Quantity coverage | Decision use |
|---|---|---|---|---|---|
| U.S. imports HS 850511 (2024) | US$478,125.34k; quantity 9,407,080 kg | 82.76% (China + Japan + Germany) | China US$359,791.11k; Japan US$20,545.08k; Germany US$15,379.79k | Available in WITS table (kg). | Model continuity risk at supplier-country level; single-country assumptions are high-risk. |
| U.S. imports HS 850519 (2024) | US$122,766.84k | 76.46% (China + Mexico + Vietnam) | China US$58,184.41k; Mexico US$25,700.08k; Vietnam US$9,981.67k | Quantity field is blank in WITS rows for this code; no open kg denominator on this table. | Do not derive per-kg cost from this row; request quote normalization by geometry and tolerance instead. |
| China exports HS 850511 (2024) | US$3,236,652.39k; quantity 130,756,000 kg | 39.64% (Germany + U.S. + Vietnam) | Germany US$546,473.02k; U.S. US$395,313.45k; Vietnam US$341,305.94k | Available in WITS table (kg). | Shows deep global demand, but destination spread means contract terms still need lane-specific safeguards. |
| China exports HS 850519 (2024) | US$502,689.89k; quantity 177,503,000 kg | 28.12% (Vietnam + India + U.S.) | Vietnam US$55,910.03k; India US$47,487.37k; U.S. US$37,959.28k | Available in WITS table (kg). | Lower concentration than 850511 suggests mixed classes; avoid assuming one homogeneous market behavior. |
Thermal and material boundary matrix (SrFe vs BaFe)
Counterexample handling: this matrix prevents Curie-only or price-only decisions when ferrite material switching is under discussion.
| Boundary signal | Barium ferrite | Strontium ferrite | Decision rule | Source |
|---|---|---|---|---|
| Maximum service temperature (sintered ferrite) | About 250°C | About 300°C | If duty cycle approaches 200°C+, default to strontium-ferrite validation branch and require thermal-life evidence. | MMPA 0100-00 Table III-4 (retrieved May 25, 2026). |
| Reversible Br temperature coefficient | About -0.18%/°C | About -0.20%/°C | Do not compare room-temperature gauss only; include derating margin in magnet-circuit acceptance criteria. | MMPA 0100-00 Table III-4 / III-5. |
| Curie reference and remagnetization caveat | Curie about 450°C; note indicates remagnetization needed if heated above Curie point. | Curie about 450°C; same remagnetization caveat applies. | Curie number is not release limit; use service-temperature and duty-cycle pass/fail gates for production decisions. | MMPA 0100-00 Table III-4 notes. |
| Substitution caveat from commodity context | USGS notes lower maximum operating temperature and lower intrinsic coercivity than strontium ferrite. | USGS frames strontium ferrite as the preferred substitute baseline in many applications. | Treat Ba/Sr switch as a design-change event, not a procurement-only change. | USGS MCS 2026 strontium chapter (published February 2026). |
Compliance and policy cadence controls
Time-sensitive controls added this round so RFQ execution can survive legal and classification updates.
| Control point | Latest evidence | Why it matters | Execution rule | Source |
|---|---|---|---|---|
| RoHS restricted-substance scope | European Commission RoHS page states current scope at 10 restricted substances (Annex II context). | Assuming legacy 6-substance scope can produce false pass decisions at material declaration review. | Every RFQ package must list substance scope version and declaration date, not only “RoHS pass” text. | EC Environment RoHS Directive page (accessed May 25, 2026). |
| Homogeneous-material concentration thresholds | GB guidance (updated July 22, 2025) keeps cadmium at 0.01% and other listed RoHS substances at 0.1% for homogeneous material. | Threshold ambiguity causes late compliance disputes when lab reports and supplier declarations use different limits. | Bind CoA/test reports to explicit threshold units (% and ppm) per homogeneous material. | UK RoHS Regulations guidance table, section 2.11 (accessed May 25, 2026). |
| HTS revision cadence (U.S.) | USITC announcement archive lists 2026 HTS Revision 1-9 from January 16 to May 28, 2026, after the 2026 Basic Edition on December 31, 2025. | Classification and landed-cost assumptions can age out within weeks, not annually. | Before PO release, log HTS revision ID + publication date and re-check broker classification. | USITC HTS announcement archive (accessed June 9, 2026). |
| Temporary surcharge time-window control | Federal Register Proclamation 11012 sets a 10% temporary import surcharge effective Feb 24 through Jul 24, 2026 unless modified earlier or extended by Congress. | The same product can carry different landed-cost outcomes depending on shipment date and entry timing. | Add pre-shipment checkpoint for surcharge validity window and keep contingency pricing branch in RFQ templates. | Federal Register Proclamation 11012 (published Feb 25, 2026). |
| Postal/de minimis duty workflow | EO 14388 was republished with annex on Apr 9, 2026 and links postal-item duty assessment to the temporary surcharge timeline until expiry or CBP process switchover. | Sample-lot and urgent spare shipments can bypass normal assumptions and distort quote-to-landed comparisons. | For each expedited/small lot path, log entry mode, declared origin/value fields, and duty method before approval. | Federal Register EO 14388 corrected republication (91 FR 17839, Apr 9, 2026). |
| RoHS vs REACH declaration split | ECHA candidate-list table shows 253 entries (page snapshot with February 4, 2026 inclusion date visible), while RoHS still operates on a 10-substance Annex II restriction scope. | Teams that treat RoHS compliance as full chemical compliance can miss downstream customer disclosure obligations. | Use dual-track declaration checks: RoHS threshold compliance plus REACH SVHC declaration update log per BOM revision. | ECHA candidate list + EC RoHS page (both accessed May 25, 2026). |
| RoHS legal-review recency | EC timeline shows RoHS review finalized on December 7, 2023 with targeted-amendment direction. | Programs with multi-year SOP windows need legal-watch triggers, not one-time declaration snapshots. | Set compliance refresh checkpoint at least quarterly and on every engineering-change order. | EC RoHS timeline entry (Dec 7, 2023). |
Policy trigger timeline (dated controls)
Event-level timeline added in this stage1b round so teams can bind RFQ and shipment decisions to exact policy windows.
| Date window | Policy event | Decision impact | Execution action | Source |
|---|---|---|---|---|
| 2026-02-24 to 2026-07-24 | Proclamation 11012 sets a temporary 10% ad valorem import surcharge window (150-day baseline). | Landed-cost sensitivity can change by shipment date even with unchanged geometry and supplier. | Add shipment-date control and fallback pricing branch before PO and logistics lock. | Federal Register Proclamation 11012 |
| 2026-02-25 | EO 14389 ends certain tariff actions but explicitly states EO 14388 and Proclamation 11012 are unaffected. | Assuming all IEEPA-linked duty effects ended at once can misprice import scenarios. | Do not collapse policy states into one “ended/not-ended” label; track by document scope. | Federal Register EO 14389 |
| 2026-04-09 | EO 14388 is republished with annex (91 FR 17839), keeping postal-item duty flow tied to surcharge timeline. | Sample lots and spare shipments may follow a different duty-administration path than standard container flows. | Require entry-mode and duty-path check before using pilot-lot landed-cost data as production proxy. | Federal Register EO 14388 republication |
| 2026-05-28 | USITC announcement archive adds 2026 HTS Revision 9 publication. | Classification assumptions from Revision 8-only snapshots can be stale within days. | Record revision ID and publication date in RFQ award sheet and revalidate before shipment release. | USITC HTS announcement archive |
Measurement and standards boundary map
Added to prevent false equivalence in cross-supplier magnetic claims when method framing differs.
| Standard | Scope | Boundary if ignored | Execution rule | Source |
|---|---|---|---|---|
| IEC 60404-8-1:2023 | Specifies minimum principal magnetic-property values and dimensional-tolerance framing for permanent magnet materials. | Grade naming may be treated as equivalent even when tolerance/property framing differs across suppliers. | Map quote claims to explicit property windows and tolerance basis before cross-supplier comparison. | IEC webstore summary page |
| IEC 60404-18:2025 | Defines open-circuit SCM measurement methods and self-demagnetizing-field correction of demagnetization curves. | Uncorrected or differently corrected curves can produce non-comparable Br/Hci claims. | Require method declaration (SCM-VSM or extraction) and correction statement in test evidence. | IEC webstore summary page |
| ASTM A977/A977M-07(2020) | Public ASTM standard list identifies this as the test method for magnetic properties of high-coercivity permanent-magnet materials. | Different hysteresigraph practices can mask method-driven spread as supplier quality spread. | Use one agreed method family in PPAP-like evidence package for final supplier ranking. | ASTM electrical and magnetic standards catalog page |
| MMPA 0100-00 (legacy reference) | States unit properties are generally not recommended as acceptance criteria and promotes load-line based acceptance methods. | Award decisions can overfit nominal grade labels and miss operating-point failures in final circuits. | Define acceptance on operating flux/load line and test setup, not only catalog grade values. | MMPA 0100-00 section 5.1 and 9.1 text |
3) SERP intent audit and anti-duplication angle
Distinct page angle: immediate tool execution + dated evidence + boundary-driven decision logic for ferrite arc magnets.
| Observed pattern | Evidence | Decision impact | Page response |
|---|---|---|---|
| Supplier catalog pages occupy high-visibility positions | Listings and product-detail pages appear alongside analysis content for the same keyword cluster. | Users expect immediate action support, not long preamble content. | Tool-first hero with deterministic score and direct next-step CTA. |
| Specification claims often lack boundary disclosure | Many pages provide grade labels but do not explain tolerance, thermal, or QC dependencies. | Price-first RFQs risk pilot failure when process assumptions surface late. | Boundary tables and failure modes are shown next to recommendations. |
| Market-size snippets vary significantly by provider | Public report snippets use different base years and taxonomy assumptions. | Forecast-only planning can overstate confidence in demand projections. | Evidence quality labels and known-unknowns table prevent false certainty. |
| Cross-page intent overlap risk inside arc ferrite cluster | Queries like "arc ferrite magnet" and "ferrite arc magnets" are semantic variants. | Splitting into multiple pages would increase cannibalization and thin-content risk. | Single canonical URL with explicit alias intent coverage in intro and FAQ. |
4) Method and evidence layer
Stage1b content-gap audit and closure log
Audit timestamp: June 9, 2026. This table lists gaps and actions completed in this round.
| Gap found | Why it mattered | Stage1b action | Status |
|---|---|---|---|
| Trade concentration was mentioned, but concentration intensity was not quantified by customs row. | Without concentration metrics, continuity planning defaults to generic “multi-source” advice and misses row-level risk. | Added trade concentration table with top-3 share, top partners, and quantity-coverage status for HS 850511/850519 (U.S. imports + China exports). | Closed |
| Thermal boundary lacked explicit SrFe vs BaFe split and could be misread as Curie-only decision. | Curie-only interpretation can pass supplier reviews that still fail at application operating temperature. | Added material/thermal boundary matrix from MMPA and USGS with explicit substitution and duty-cycle execution rules. | Closed |
| Compliance guidance lacked explicit threshold + update-cadence framing for execution teams. | Teams often copy “RoHS pass” text without versioned thresholds or legal-refresh checkpoints. | Added compliance/policy cadence table covering 10-substance scope, threshold anchors, and 2026 HTS revision tempo. | Closed |
| Some open sources remain incomplete (for example missing quantity fields in HS 850519 partner rows) and legal interpretation still needs manual sign-off. | Evidence-chain breaks can cause false precision in price-per-kg or policy claims. | Marked unresolved items as pending and added minimum executable fallback actions in known-unknowns section. | Partially closed |
| Policy timing section used an outdated HTS cutoff and did not include temporary surcharge sunset logic. | Quote validity can fail when revision cadence and temporary policy windows are not captured with exact dates. | Updated policy rows to include HTS Revision 9 (May 28, 2026) plus Proclamation 11012 and EO 14388 timeline controls. | Closed |
| Alias-merge task for the exact short query "arc ferrite" was weaker than longer variants. | The active OpenSpec change requires canonical coverage for "arc ferrite" without creating a duplicate route. | Added exact "arc ferrite" wording to metadata, hero alias note, tool explanation, FAQ, and internal anchor text on the canonical URL. | Closed |
| Compliance guidance did not separate RoHS thresholds from REACH SVHC list dynamics. | Single-track declarations can pass internal checks but fail customer chemical-disclosure audits. | Added RoHS-vs-REACH cadence control with ECHA candidate-list reference and dual-track declaration rule. | Closed |
| Measurement comparability boundary was under-specified for cross-supplier Br/Hci claims. | Method mismatch can make two “same grade” claims non-comparable and trigger false award confidence. | Added IEC/MMPA/ASTM measurement-boundary matrix and execution rules in report layer. | Closed |
| Upstream strontium shock signals were not quantified beyond import-reliance percentage. | Continuity plans built only on net-import reliance miss volume and demand-whipsaw exposure. | Added USGS 2025 strontium consumption (+16%) and celestite-import jump (8,100 vs 29 tons) as explicit risk triggers. | Closed |
| Tool scoring rules were not tied tightly enough to the external evidence chain. | A hybrid page can look evidence-rich while users still cannot tell which standards or data points constrain each tool input. | Added an evidence-to-tool translation table mapping MMPA, ASTM, IEC, USGS, and WITS evidence to score boundaries, invalid shortcuts, and minimum proof before award. | Closed |
| Finished-part acceptance traps were under-specified for arc ferrite programs. | Buyers can overtrust grade labels, specimen curves, Curie temperature, or customs aggregates and still fail pilot-to-mass transfer. | Added acceptance-trap table with reliable alternatives for grade-label, specimen-to-part, method-equivalence, Curie-number, and customs-aggregate shortcuts. | Closed |
Decision method flow
Input -> score -> boundary -> action. This keeps tool output and report evidence aligned in one decision chain.
Source-backed fact table
Dated facts used by this page. Uncertain items are explicitly flagged as pending.
| Fact | Value | Date/context | Decision implication | Source | Evidence status |
|---|---|---|---|---|---|
| China export depth in permanent magnets (HS 850511) | US$3,236,652.39k; 130,756,000 kg | WITS source year 2024 (page refreshed May 25, 2026 13:19 ET) | Large value confirms liquidity, but does not isolate arc-segment process capability. | WITS CHN exports HS 850511 | Verified with boundary note |
| China export depth in other permanent-magnet row (HS 850519) | US$502,689.89k; 177,503,000 kg | WITS source year 2024 (page refreshed May 25, 2026 13:19 ET) | High quantity with lower implied unit value signals broad product mix. | WITS CHN exports HS 850519 | Verified with boundary note |
| Implied unit value spread from customs aggregates | HS 850511 about US$24.8/kg vs HS 850519 about US$2.8/kg | Computed May 25, 2026 from WITS value/quantity rows | Price benchmarks need segment-normalized quoting assumptions. | Derived from WITS rows | Verified |
| Ferrite thermal coefficients and Curie context | Reversible Br coefficient about -0.2%/°C; Curie about 450°C | MMPA public PDF snapshot (retrieved May 25, 2026) | Thermal duty-cycle tests are mandatory before release decisions. | MMPA Standard 0100-00 Table III-5 | Verified with boundary note |
| Arc gaging tolerance reference | Arc-radius window around +0.006 in / -0.006 in references | MMPA public PDF snapshot (retrieved May 25, 2026) | Tolerance controls should be explicit in RFQ and incoming QA plan. | MMPA Standard 0100-00 Table III-3 | Verified with boundary note |
| U.S. import concentration by HS row differs materially | China share in U.S. 2024 imports: about 75.25% for HS 850511 vs about 47.39% for HS 850519 | WITS U.S. import tables refreshed May 25, 2026 13:19 ET | Continuity risk should be assessed by row, not a blended assumption. | WITS USA import rows HS 850511 / 850519 | Verified |
| HTS revision cadence and classification sensitivity | USITC announcement archive lists 2026 HTS Revision 1-9 between January 16 and May 28, 2026 | USITC archive accessed June 9, 2026 | Landed-cost assumptions must reference revision ID and publication date, not annual static assumptions. | USITC Harmonized Tariff announcement archive | Verified with boundary note |
| Temporary import surcharge window under U.S. policy trigger | Proclamation 11012 sets a temporary surcharge of 10% ad valorem effective Feb 24, 2026 through Jul 24, 2026 unless suspended, modified, or extended by Congress | Federal Register publication date February 25, 2026 | Quote validity should include shipment-date checkpoints rather than static annual assumptions. | Federal Register Proclamation 11012 | Verified with boundary note |
| De minimis postal-duty path was republished with annex details | EO 14388 was republished on April 9, 2026 (91 FR 17839) and ties postal-item duty assessment to the surcharge timeline until expiry or CBP new entry process effective date | Federal Register corrected republication dated April 9, 2026 | Small-lot and sample logistics assumptions should be reviewed against current entry workflow. | Federal Register EO 14388 republication | Verified with boundary note |
| RoHS restricted-substance scope and threshold anchors | Current scope remains 10 restricted substances; homogeneous-material thresholds commonly used are cadmium 0.01% and others 0.1% | EC RoHS page + UK RoHS guidance snapshot (accessed May 25, 2026) | Material declaration quality gates must be included before lot release. | EC RoHS page and UK RoHS section 2.11 table | Verified |
| U.S. strontium reliance context | Net import reliance listed at 100% (2025 estimate) | USGS Mineral Commodity Summaries 2026 (February 2026) | Arc ferrite sourcing still needs continuity controls and fallback lanes. | USGS MCS 2026 strontium chapter | Verified |
| Strontium end-use linkage to ferrite magnets | USGS 2025 U.S. consumption estimate: ceramic ferrite magnets accounted for about 14% of strontium end uses | USGS Mineral Commodity Summaries 2026 (published February 2026) | Ferrite sourcing strategy must include upstream strontium continuity controls. | USGS MCS 2026 strontium chapter | Verified |
| Strontium volume shock signal in 2025 | USGS reports apparent consumption of strontium compounds up 16% in 2025 and celestite imports up to 8,100 tons from 29 tons in 2024 | USGS Mineral Commodity Summaries 2026 (published February 2026) | Continuity models should include upstream demand and logistics shock scenarios, not only price trend assumptions. | USGS MCS 2026 strontium chapter | Verified |
| RoHS and REACH cadence are not the same control plane | ECHA candidate list table shows 253 entries and latest inclusions dated February 4, 2026 | ECHA candidate-list page snapshot accessed May 25, 2026 | RoHS pass text alone is insufficient for many B2B declarations; REACH SVHC watch must run in parallel. | ECHA candidate-list table | Verified with boundary note |
| Measurement-method boundary for permanent-magnet properties | IEC 60404-18:2025 defines open-circuit SCM methods and requires correction of self-demagnetizing field when deriving demagnetization curves | IEC publication date February 20, 2025; page accessed May 25, 2026 | Cross-supplier Br/Hci comparisons are weak unless test method and correction approach are declared. | IEC 60404-18:2025 summary page | Verified with boundary note |
| Legacy standard boundary on acceptance criteria | MMPA 0100-00 states unit material properties should not be used as acceptance criteria for finished magnets and recommends load-line/operating-flux-based specification | MMPA PDF snapshot accessed May 25, 2026 | RFQ should define operating-point acceptance and test method, not grade label only. | MMPA 0100-00 section 5.1 / 9.1 context | Verified with boundary note |
| USGS substitute boundary between barium and strontium ferrite | USGS notes barium ferrite has lower maximum operating temperature and lower intrinsic coercivity than strontium ferrite | USGS Mineral Commodity Summaries 2026 (published February 2026) | Material substitution decisions should be treated as engineering changes, not quote-only changes. | USGS MCS 2026 strontium chapter | Verified with boundary note |
| Arc-only customs segmentation | No reliable open-data code cleanly isolates arc ferrite magnet transactions as a standalone global customs class | Status as of May 25, 2026 | Factory-level qualification evidence remains mandatory. | Open-data boundary based on HS taxonomy scope | Pending |
| Quantity coverage gap in U.S. import HS 850519 rows | WITS 2024 U.S. import table for HS 850519 shows trade value, but quantity field is blank in partner rows | Table accessed May 25, 2026 | Per-kg benchmarking cannot be derived from this row without supplemental source data. | WITS USA imports HS 850519 table | Pending |
5) Tool boundaries and geometry controls

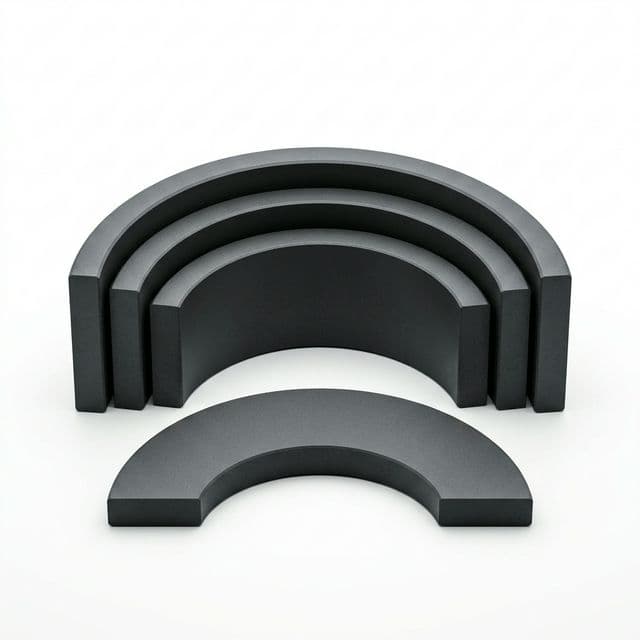

Arc geometry window
Tolerance stack focus
Thermal boundary signal
Boundary table used by the fit tool
| Input field | Planning window | Why it matters | Failure mode if ignored |
|---|---|---|---|
| Annual demand (k pcs) | 10-12,000 | Very low and very high volumes have different economics and quality control burden. | Quote strategy can be misaligned with real production cadence and supplier setup cost. |
| Arc geometry (OD / angle / thickness) | OD 25-260 mm, angle 20-170°, thickness 2-40 mm | Geometry complexity drives tooling stability and reject risk. | Nominal grade passes but dimensional instability causes pilot-to-mass drift. |
| Target air-gap flux | 160-500 mT | Higher flux targets tighten feasible ferrite window and can force grade/material fallback. | Program locks into infeasible magnetic targets and triggers late redesign. |
| Operating temperature | -20°C to 220°C | Thermal derating is one of the most common hidden causes of field performance loss. | Room-temperature validation passes while field duty fails at heat load. |
| Lead-time target | 2-20 weeks | Aggressive schedules often reduce evidence depth and increase process escape risk. | Supplier award happens before process capability is fully validated. |
| Quality evidence depth | CoA / Cpk1.33 / PPAP-like package | Evidence depth controls decision confidence more than brochure claims. | Late discovery of process instability after commercial commitment. |
Evidence-to-tool translation: why the checker changes score
Added June 9, 2026. This table connects source-backed boundaries to the score output so the tool remains auditable, not a black-box recommendation.
| Tool decision point | External evidence | Boundary applied to tool | Invalid shortcut | Minimum proof before award |
|---|---|---|---|---|
| Geometry and tolerance score | MMPA 0100-00 states dimensions and tolerances must be defined on the drawing and agreed before order acceptance; individual manufacturers have different tolerance capability. | The checker treats precision tolerance as higher risk unless quality evidence depth increases to Cpk/PPAP-like proof. | Using catalog grade text or sample photos as proof that OD, arc angle, radial thickness, and assembly gap will hold in mass production. | Drawing-controlled critical dimensions, gage method, first-article results, and lot-level Cpk or dimensional history for the quoted geometry. |
| Flux and magnetic-property confidence | ASTM A977/A977M says cut specimens may not exactly represent the original magnet and different test systems may not yield identical results; IEC 60404-18 requires correction of self-demagnetizing-field effects for open-circuit SCM curves. | The checker keeps high-flux and precision cases conditional until the supplier declares test method, sensing position, and correction basis. | Comparing two supplier Br/Hci curves as equal when one is open-circuit corrected data and the other is finished-part or closed-circuit data. | Test method family, fixture/circuit condition, Hall probe or coil position, calibration basis, and correlation between sample curve and finished arc performance. |
| Thermal derating score | MMPA frames thermal values as design guidelines, not acceptance criteria; irreversible losses depend on material, geometry, and circuit. | Operating temperature above the normal window reduces score and pushes users toward duty-cycle validation, not Curie-number approval. | Approving a ferrite arc on room-temperature gauss readings because Curie temperature is far above application temperature. | Duty-cycle thermal test, demagnetization margin at hot condition, and pass/fail limits tied to the assembled magnetic circuit. |
| Sourcing and continuity recommendation | USGS MCS 2026 lists U.S. strontium net import reliance at 100% and reports 2025 celestite imports rising sharply, while WITS customs rows still do not isolate arc geometry. | Single-lane or trader-only sourcing receives lower confidence when annual demand, compliance scope, or continuity penalty is high. | Treating ferrite as supply-risk-free because it avoids rare-earth magnets, or treating HS aggregates as supplier capability proof. | Named factory, reserve-lane plan, material declaration path, and pilot-lot acceptance tied to the actual arc drawing. |
| Lead time and evidence-depth tradeoff | MMPA notes statistically valid sampling for inspection/testing unless otherwise agreed; accelerated schedules commonly compress sampling and root-cause loops. | Lead times below the normal planning band reduce score unless scope is low-risk and evidence already exists. | Accepting an expedited quote as equivalent to a qualified production plan without confirming inspection depth. | Sampling plan, control plan, agreed acceptance limits, shipment-date policy checkpoint, and recovery path for first-lot rejects. |
6) Comparison layer: options, tradeoffs, and fallback paths
Grade/force-density tradeoff visual
Sourcing-path split visual
Decision comparison table
Use this table for scenario decisions, not as a universal standards-conversion chart.
| Option | Decision signal | When to use | Main tradeoff | Fallback path |
|---|---|---|---|---|
| Standard ferrite arc baseline (Y35-like window) | Balanced path for many motor and actuator programs when geometry and thermal boundaries are manageable. | Cost and continuity matter, and package constraints are not ultra-compact. | Less magnetic headroom versus higher-energy alternatives. | Open a parallel Y40+ or NdFeB branch when flux and package constraints tighten. |
| Higher ferrite class push (Y40-like) | Extends ferrite performance before switching chemistry. | Need incremental force-density increase without full rare-earth switch. | Narrower process window and stricter QC evidence requirement. | Keep dual-material pilot plan until thermal and dimensional stability is proven. |
| Trader-mediated sourcing path | Fast quote handling but weaker direct process visibility. | Short cycle and low complexity with clear fallback plan. | Higher risk of evidence gaps during capability or root-cause review. | Force named-factory traceability and measurable lot-level evidence in contract terms. |
| Direct or dual-factory path | Best for process control and continuity under medium/high risk programs. | Programs with tight tolerance, compliance gates, or continuity penalties. | Higher onboarding overhead and qualification workload. | Use phased dual-source: one primary lane plus a validated reserve lane. |
Need a fast conditional-score resolution path?
Send geometry, thermal, and evidence assumptions before tooling lock. We return a checklist for RFQ-ready closure.
7) Risk and mitigation layer
Risk matrix
Scenario switch trigger
Risk register with mitigations
| Risk | Probability | Impact | Trigger | Mitigation |
|---|---|---|---|---|
| Alias/page cannibalization risk | Medium | High | Publishing multiple near-duplicate pages for arc ferrite keyword variants. | Keep one canonical route with explicit alias coverage and reinforced internal anchors. |
| Geometry tolerance drift during scale-up | Medium | High | Pilot lot passes but mass lot shows OD/angle stability drift. | Lock gaging method, dimensional Cpk targets, and incoming inspection criteria before award. |
| Thermal derating underestimated in release decisions | Medium | High | Room-temperature checks used as sole acceptance gate. | Add duty-cycle thermal test and demag-margin checkpoints before PO freeze. |
| Landed-cost assumptions stale vs policy timeline | Medium | Medium | Duty model built from outdated HTS revision or policy notice state. | Record revision/date in quote sheet and revalidate before shipment release. |
| Supply continuity overconfidence in ferrite path | Medium | Medium | Single-lane sourcing with no strontium continuity controls. | Maintain dual-lane qualification and material/substitution contingency plan. |
| Evidence depth mismatch with compliance scope | Medium | High | Automotive or regulated use-cases awarded on CoA-only evidence. | Escalate to PPAP-like evidence package and gated release checklist. |
Boundary conditions and execution rules
If these boundaries are not explicitly locked in RFQ and testing, treat tool output as preliminary only.
| Topic | Boundary condition | Risk if ignored | Execution rule | Source |
|---|---|---|---|---|
| Standards interpretation boundary | Legacy grade naming and current certificate practice are not always one-to-one mappings. | Label-only comparisons can produce false equivalence between suppliers. | Bind RFQ to explicit magnetic-property windows and test conditions. | MMPA reference + supplier certificate review practice |
| Measurement-method boundary | Magnetic-property values are method-dependent; open-circuit data may require self-demag correction before comparison. | Cross-supplier Br/Hci benchmarks can look comparable while actually reflecting different test setups. | Require method family + correction method disclosure (IEC 60404-18 context) in supplier evidence packs. | IEC 60404-18:2025 public summary + ASTM method list |
| Thermal boundary | Curie reference is not the same as application operating approval limit. | Field performance loss despite room-temperature pass. | Approve only after duty-cycle thermal validation with clear pass/fail margins. | MMPA Table III-5 |
| Customs classification boundary | Public HS/HTS rows can signal context but cannot guarantee final broker classification outcomes. | Unexpected landed-cost drift after contract terms are locked. | Require broker classification checkpoint and revision-date log before shipment release. | USITC HTS revision cadence and customs practice |
| Compliance boundary | RoHS declarations can become stale when legal review updates or BOM changes occur. | Lot release delays or audit failures near shipment window. | Attach declaration version, threshold basis, and review date to each part number + lot. | EC RoHS page + implementation guidance table |
| Regulatory-scope boundary | RoHS 10-substance threshold compliance and REACH SVHC declaration obligations are separate control layers. | Programs may pass internal RoHS checks but fail customer or region-specific chemical disclosure requirements. | Operate dual declaration logs: RoHS threshold basis + REACH candidate-list watch per BOM change. | EC RoHS page + ECHA candidate list table |
| Macro data boundary | Trade aggregates do not represent supplier-level reject rate or process consistency. | Award decisions based on market size instead of real capability evidence. | Treat macro trade signals as context only, then validate supplier process evidence directly. | WITS customs aggregates and open-data scope limits |
| Data completeness boundary | Public trade rows can have missing quantity fields (for example U.S. HS 850519 in 2024 WITS import table). | Per-kg pricing models can be built on nonexistent denominators and misprice RFQ strategy. | When quantity is blank, do not compute unit values; switch to normalized RFQ comparison templates. | WITS USA imports HS 850519 table |
Acceptance traps: what the public evidence does not prove
These are the main false-confidence paths found in the June 9, 2026 audit. They are marked as limits, not conclusions.
| Trap | Why it fails | Reliable alternative | Source basis |
|---|---|---|---|
| Grade-label trap | MMPA explicitly treats listed material properties as descriptions, not finished-magnet inspection criteria. | Specify operating flux/load-line or application circuit acceptance in the drawing and RFQ, then require supplier evidence against that condition. | MMPA 0100-00, sections 5.1 and 9.1 context. |
| Specimen-to-part trap | ASTM A977 warns that a specimen cut from a larger magnet may not exactly represent the original sample and must be interpreted against part performance history. | Correlate material-characterization coupons with finished arc checks and field-relevant assembly tests. | ASTM A977/A977M-07(2020), Significance and Use 4.2. |
| Method-equivalence trap | ASTM notes different test systems can produce different results; IEC 60404-18 separates SCM-VSM and SCM-extraction methods and requires demag-field correction. | Request the method family, fixture/circuit condition, correction method, and sensor location before ranking supplier curves. | ASTM A977/A977M 4.3 and IEC 60404-18:2025 summary. |
| Curie-number trap | MMPA says thermal values are design guidelines and irreversible temperature characteristics depend on material, geometry, and circuit. | Use hot-condition circuit performance, demagnetization margin, and thermal cycling as release gates. | MMPA 0100-00, section 5.2. |
| Customs-aggregate trap | WITS/HS rows show macro trade context but do not identify arc geometry, manufacturing route, or reject-rate outcomes. | Use customs rows for liquidity only, then qualify named factories with drawing-level samples and lot evidence. | WITS HS 850511/850519 scope boundary. |
8) Scenario examples (setup -> output -> action)
Scenario A: Mid-size motor refresh under cost pressure
Setup: OD 90 mm, arc 58°, thickness 11 mm, 320 mT target, 280k annual demand, 8-week lead-time target.
Tool outcome: Strong or conditional depending on quality-depth and sourcing-path selections.
Recommended action: Use ferrite arc baseline RFQ and require lot-level capability evidence before mass launch.
Scenario B: Compact actuator with high flux target
Setup: OD 42 mm, high flux target near upper band, tight package margin.
Tool outcome: Conditional or low due to force-density and thermal window tension.
Recommended action: Run parallel architecture path with higher-grade ferrite or alternative material.
Scenario C: Fast re-source after lead-time disruption
Setup: Existing geometry fixed; target lead time below 5 weeks; trader path initially considered.
Tool outcome: Score drops due to schedule pressure and reduced evidence depth risk.
Recommended action: Switch to direct/dual-source plus minimum quality evidence gates before award.
Scenario D: Compliance scope upgraded mid-cycle
Setup: Program shifts from standard industrial scope to regulated market requirement.
Tool outcome: Conditional state with explicit warning on evidence-depth mismatch.
Recommended action: Escalate to PPAP-like documentation and refresh material declarations before release.
9) FAQ by decision intent
Intent: keyword and page scope
Intent: tool usage and result interpretation
Intent: risk, compliance, and sourcing decisions
10) Stage1b evidence increment: known unknowns and fallback paths
Known unknowns (explicitly marked)
This page avoids false certainty. Where evidence is weak, we keep only minimum executable continuation paths.
| Question | Current status | Decision impact | Minimum executable path |
|---|---|---|---|
| What is the publicly verifiable cross-supplier Cpk distribution for ferrite arc OD/angle tolerances? | No reliable open dataset with consistent method and segment scope was found. | Cannot claim market-average process capability with high confidence. | Request supplier-side Cpk evidence by critical dimensions and lot history before tooling freeze. |
| Is there a public, transaction-grade arc-ferrite price index normalized by geometry and tolerance? | No authoritative open index identified; listings are mostly quote-driven catalogs. | Unit-price comparisons can be distorted by hidden scope differences. | Use normalized RFQ templates and compare total landed cost with identical scope assumptions. |
| Can customs rows isolate arc ferrite magnet segment performance directly? | No standalone global customs row isolates this segment in open trade datasets. | Macro-demand signals cannot replace supplier qualification evidence. | Combine customs context with drawing-level process audit and pilot acceptance records. |
| Can we compute stable U.S. per-kg benchmarks from both permanent-magnet HS rows? | Not fully. U.S. HS 850519 import rows in WITS 2024 expose value by partner but leave quantity fields blank. | A single blended US$/kg benchmark would overstate precision and can bias quote negotiation. | Use HS 850511 per-kg only as directional context and rely on geometry-normalized RFQ comparisons for 850519-like scope. |
| Can all policy claims be validated from machine-readable public pages at run-time? | Partially. Core Federal Register texts were accessible in this round, but policy interpretation still requires legal verification in live contract context. | Policy references may need manual confirmation checkpoints before shipment-release decisions. | Treat USITC revision archive + Federal Register document IDs as primary checkpoints and add broker/legal sign-off before final award. |
11) Stage1c review gate and self-heal results
Review gate summary
Gate rule: blocker = 0 and high = 0 before SEO/GEO stage. Status reflects this stage1c round revalidation (June 9, 2026).
Tool/report flow confirmation
First screen prioritizes tool value and jump-to-tool action, then report sections deepen trust and decision quality.
Severity audit and fixes
| Severity | Finding | Fix applied | Status |
|---|---|---|---|
| Blocker | No critical break found after rerunning tool flow and recovery paths. | Revalidated empty -> run -> error -> boundary -> CTA chain in stage1c. | Closed |
| High | Adjacent decision links used invalid interactive nesting (anchor wrapping button), which can reduce accessibility reliability and tap-target consistency. | Replaced nested anchor+button markup with Button-asChild + LocaleLink so each CTA renders as one valid interactive element. | Closed |
| High | Stage1c gate timestamp text and HTS policy evidence referenced the May 25 refresh after the June 9, 2026 alias-merge pass. | Synchronized stage1c gate wording with the June 9, 2026 review round and updated HTS evidence to Revision 9. | Closed |
| High | The exact alias query "arc ferrite" was less visible than longer variants in the hero, tool copy, and FAQ. | Added exact alias coverage on the canonical page while preserving one URL for the cluster. | Closed |
| Medium | Open-data limits remain for arc-only customs segmentation. | Added known-unknowns section and minimum executable fallback paths. | Open |
| Low | Visual scan polish opportunities remain for future SEO/GEO stage. | Deferred to stage2 checklist; core information architecture already stable. | Closed |
Source registry and update log
Core evidence for this page was refreshed on June 9, 2026. Use these links for direct verification during quarterly updates.
| Source | Supports | Update/publication time | Link |
|---|---|---|---|
| WITS / UN Comtrade (HS 850511, 850519) | Trade depth, quantity context, and unit-value spread anchors for market liquidity discussion. | 2024 trade year rows with page refresh timestamp May 25, 2026 13:19 ET. | Open source |
| USITC HTS announcement archive | Revision cadence for duty/classification checkpointing in landed-cost planning. | Archive accessed June 9, 2026 (includes 2026 HTS Revision 9 on May 28, 2026). | Open source |
| Federal Register policy documents (Proclamation 11012, EO 14389, EO 14388) | Time-bounded surcharge and de minimis/postal duty workflow used in landed-cost risk controls. | Publication dates Feb 25 and Apr 9, 2026. | Open source |
| MMPA Standard 0100-00 public PDF | Ferrite thermal/tolerance context plus legacy guidance that unit properties should not be acceptance criteria. | Retrieved May 25, 2026 (legacy reference standard). | Open source |
| USGS Mineral Commodity Summaries 2026 (Strontium) | Upstream continuity risk context, import-reliance signal, and 2025 demand/volume shock data. | Published February 2026. | Open source |
| European Commission RoHS Directive page | Current restricted-substance scope, review timeline, and implementation references. | Page snapshot accessed May 25, 2026. | Open source |
| UK RoHS regulations guidance (section 2.11) | Homogeneous-material threshold table (cadmium 0.01%; other listed substances 0.1%) for execution checklists. | Guidance updated July 22, 2025; page accessed May 25, 2026. | Open source |
| ECHA Candidate List table (REACH SVHC) | SVHC cadence checkpoint to separate REACH disclosure risk from RoHS threshold compliance. | Page snapshot accessed May 25, 2026 (shows 253 entries and Feb 4, 2026 inclusion date on listed items). | Open source |
| IEC 60404-8-1:2023 and IEC 60404-18:2025 summary pages | Measurement-method comparability and magnetic-property specification boundaries. | Publication dates Sep 20, 2023 and Feb 20, 2025; pages accessed May 25, 2026. | Open source |
| ASTM electrical and magnetic standards catalog | Test-method anchors (A977/A977M, A1054) for high-coercivity magnets and ferrite material specification context. | Page snapshot accessed May 25, 2026. | Open source |
Adjacent decision pages
Use these pages when you need deeper factory, market, or regional execution context after the general ferrite arc decision.
Inquiry Email
Copy the email, or open your default email app to start an inquiry.
